SKU: KSTF002T

The Toyota 4Runner (2009-Current) Slimsport Roof Rack Kit / Lightbar ready - by Front Runner was built for your best adventures. Its wind fairing comes ready for mounting a light bar, for all the drives after dusk. The rack is compatible with most Front Runner accessories, so building the perfect setup for a day, weekend or week out in the wild is easier than ever.

This low-profile flat deck Slimsport rack has a load carrying area of 2080mm (81.88") x 1175mm (46.25").
The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
Easily add on the Rack Accessory Mounting Bracket (RRAC182) for most Front Runner side mount accessories (sold separately).
Included in the Toyota 4Runner (2009-Current) Slimsport is a 40" cutout to allow the use of the Front Runner 40u201d LED Slim Light Bar (LIGH213) (sold separately).
Note: Uses factory fixing points with no drill required front foot as standard but also includes hardware included for drill option (recommended).
Note: Under Rack Tables are not compatible with the Slimsport rack kit range

KSTF002T - Toyota 4Runner (2009-Current) Slimsport Roof Rack Kit / Lightbar ready - by Front Runner

Consisting of:
1x KSTF001 - Toyota 4Runner (2009-Curr) SlimSport Roof Rack Kit
1x RRAC195 - Toyota4Runner Slimsport Rack 40" LBar Wind Fairing

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 39.95kg (88.07lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicleu2019s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.

Shipping Dimensions:
Width: 330mm (13")
Length: 1700mm (67")
Height: 210mm (8")

Shipping Weight:
Weight: 41kg (90lbs)

Installation Instructions for KSTF001

VIEW / DOWNLOAD

Installation Instructions for RRAC195

VIEW / DOWNLOAD

Installation Instructions for RRAC971

VIEW / DOWNLOAD

*A PDF viewer is required to view the fitting instructions.

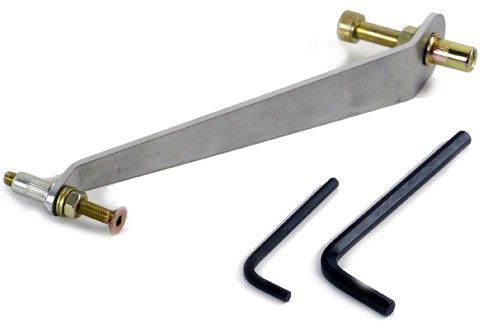

RIVNUT TOOL / M6/M8 - BY FRONT RUNNER
