APACHE OFFROAD HD OFFSET REAR EXTENDED UPPER LINK SET | 2003+ 4RUNNER, 2007+ FJ CRUISER, 2003+ GX470 / GX460

  • Sale
  • Regular price $340.00
  • Will not ship until


Our HD Rear Links are engineered to provide maximum protection against damage, maximize travel, increase rear axle articulation, and correct rear axle alignment when installed on lifted trucks and in long travel applications. Our Upper Control Arms feature an offset design that helps to eliminate binding that is common among many aftermarket brands as well as the factory Control Arms, due to the location and design of the fuel tank on these trucks. . Our Links are ideal for trucks with 2-3.5 inch lifts installed and they are KDSS compatible.

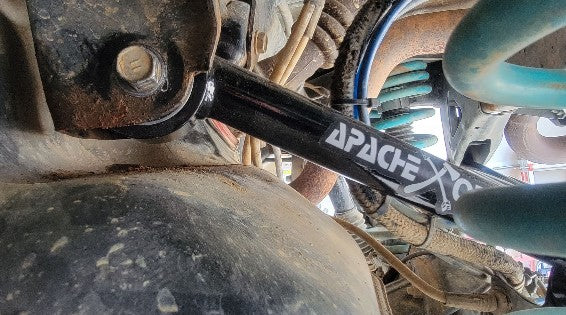

Our Offset Design allows for increased clearance, allowing for a substantial reduction in the binding that occurs at full droop where factory upper link makes contact with the gas tank.

All of our Rear Control Arms are fabricated out of DOM Heavy Wall Tube; Thatu2019s THICKER than the Competition!

Upper Control Arms- 1.25 x .25 DOM Tube

To put this in perspective- Most rock sliders are made out of .120 wall tube, with many brands being made out of Hot Rolled (HREW) tube, which is not as strong as DOM and quite a bit less expensive to use in manufacturing.

Links are Fitted with Apache Multiple Durometer Flex Joints

  • Maintenance Free, long lasting, quite design
  • Fused PTFE Impregnated Liner- No Grease Needed
  • High Corrosion Resistance, Salt and other corrosive used in northern regions are no longer a worry.
  • Free Floating Sleeve with Multiple Durometers (Hardness levels) of polyurethane- Designed to provide extreme articulation with zero binding.
  • 30 degrees of misalignment



Unlike other links on the market using flex joints, Our flex joints are made specifically for OE mounts; meaning they fit the frame mount without the need to use a washer next to the joint, different hardware, etc. They are not an off the shelf retrofitted joint.

Includes:

2 Rear Upper Fixed Control Arms / Links

Our Control Arms are fixed to alleviate potential common issues seen in adjustable Control Arms; such as separation caused by a loosening jam nut. Our Control Arms do not require frequent / regular maintenance. Installation is a breeze with no guessing as to where the adjuster needs to be set.

Fitment

Lexus GX460 2010, Lexus GX460 2011, Lexus GX460 2012, Lexus GX460 2013, Lexus GX460 2014, Lexus GX460 2015, Lexus GX460 2016, Lexus GX460 2017, Lexus GX460 2018, Lexus GX460 2019, Lexus GX460 2020, Lexus GX460 2021, Lexus GX460 2022, Lexus GX470 2003, Lexus GX470 2004, Lexus GX470 2005, Lexus GX470 2006, Lexus GX470 2007, Lexus GX470 2008, Lexus GX470 2009, Toyota 4Runner 2003, Toyota 4Runner 2004, Toyota 4Runner 2005, Toyota 4Runner 2006, Toyota 4Runner 2007, Toyota 4Runner 2008, Toyota 4Runner 2009, Toyota 4Runner 2010, Toyota 4Runner 2011, Toyota 4Runner 2012, Toyota 4Runner 2013, Toyota 4Runner 2014, Toyota 4Runner 2015, Toyota 4Runner 2016, Toyota 4Runner 2017, Toyota 4Runner 2018, Toyota 4Runner 2019, Toyota 4Runner 2020, Toyota 4Runner 2021, Toyota 4Runner 2022, Toyota FJ Cruiser 2007, Toyota FJ Cruiser 2008, Toyota FJ Cruiser 2009, Toyota FJ Cruiser 2010, Toyota FJ Cruiser 2011, Toyota FJ Cruiser 2012, Toyota FJ Cruiser 2013, Toyota FJ Cruiser 2014

Vehicle Model

4Runner, FJ Cruiser, GX460, GX470

Vehicle Year

2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020

Vehicle Make

Lexus, Toyota
