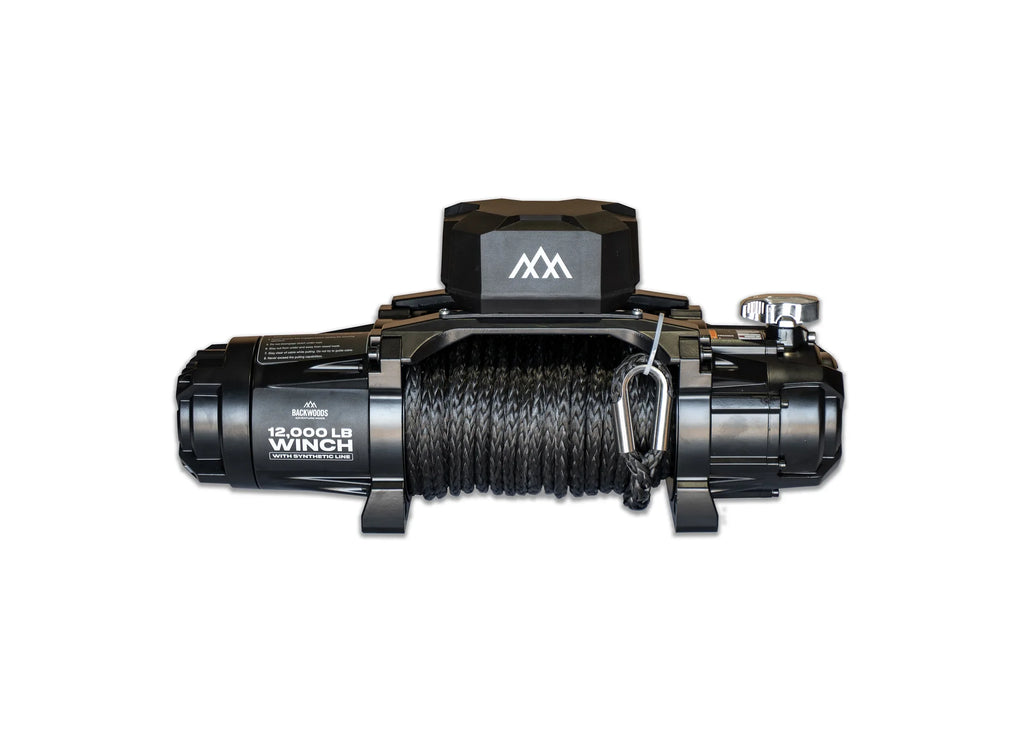

12,000lb Winch w/ Synthetic Line
Give your build the winch it deserves with our 12,000lb Backwoods winch. Serious pulling power, big features, and as always – good looks.
Features:
- Designed to integrate perfectly with Backwoods bumpers
- Standard 10" x 4.5" mounting bolt pattern fits most winch-ready bumpers on the market
- 12,000 lb rated line pull – built for real recovery situations
- 6.0 HP Series Wound 12V DC motor with 3-stage planetary geartrain
- 216:1 gear ratio for maximum pulling torque
- Automatic in-drum brake for safe, controlled operation

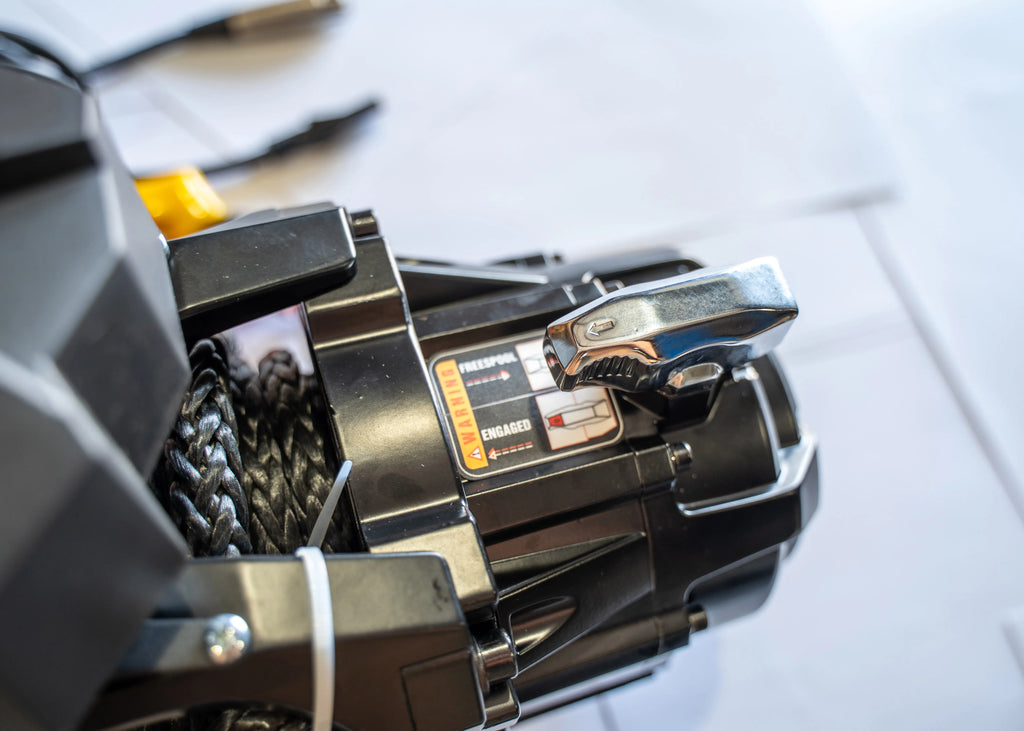

- Sliding ring gear clutch for quick free-spooling

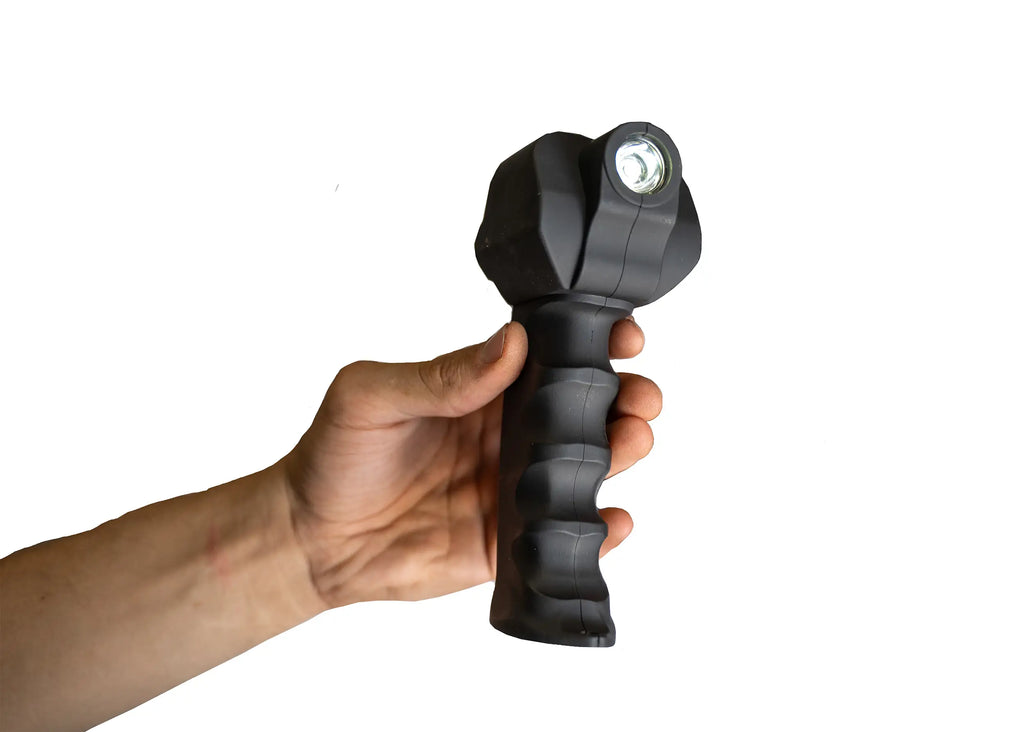

- Wireless remote with built-in flashlight for hands-free operation

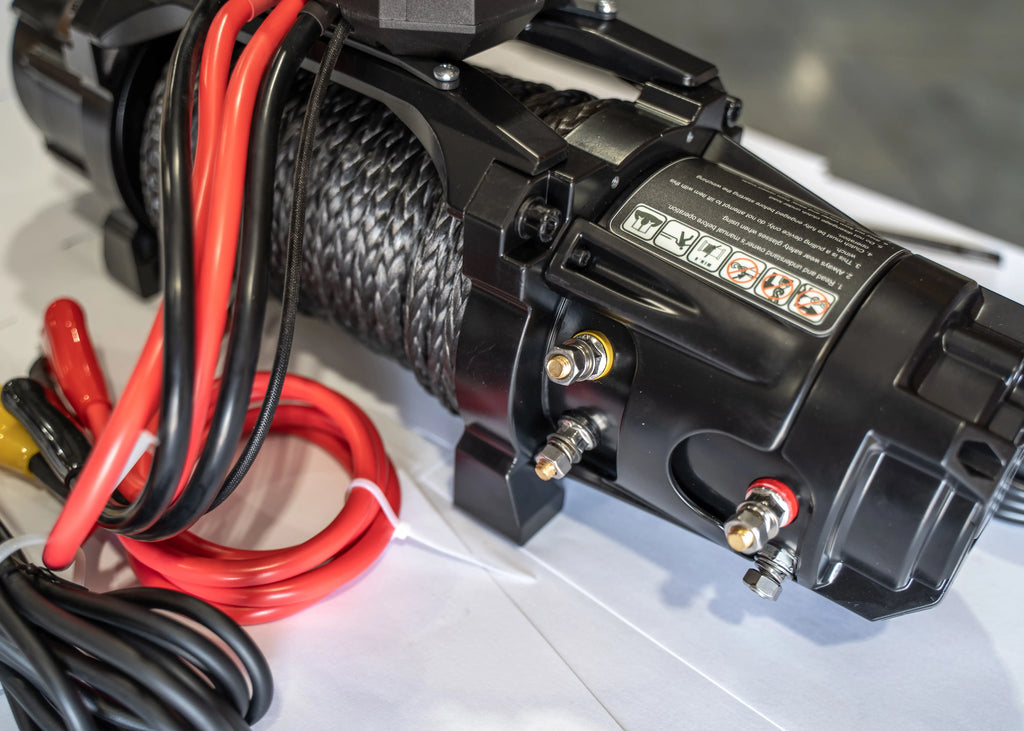

- Removable solenoid for clean, flexible mounting and wiring
- 85ft of synthetic line – lighter, safer, and easier to handle than steel cable
- 10" x 4.5" standard mounting bolt pattern fits most winch-ready bumpers
- Recommended for use with a 12V battery, minimum 650 CCA

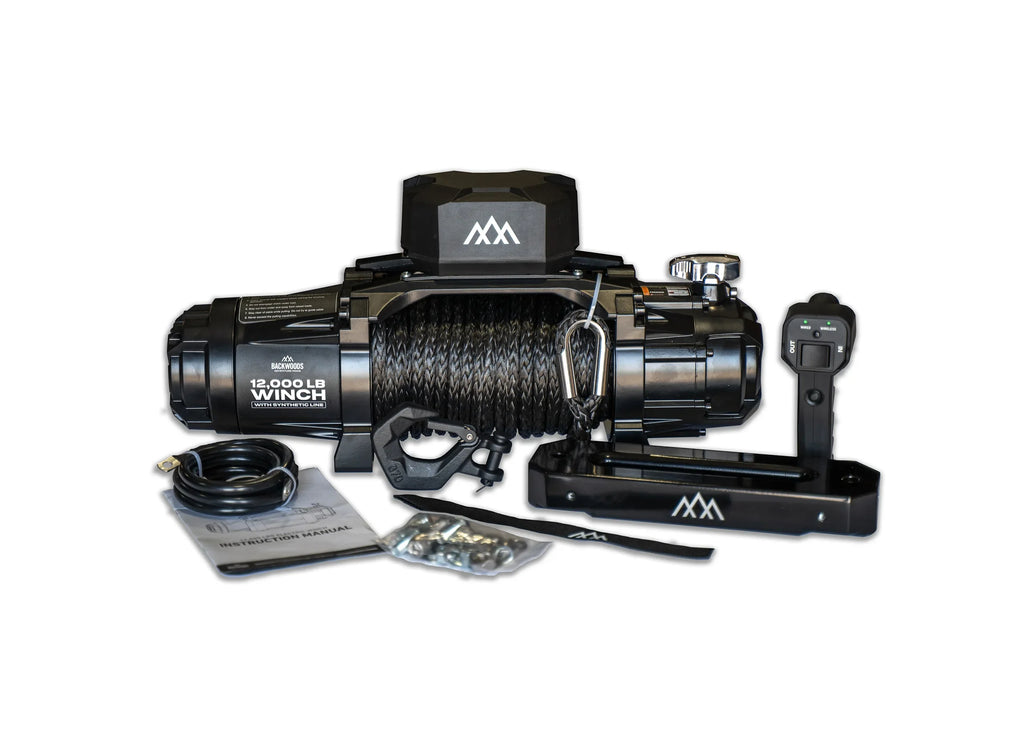

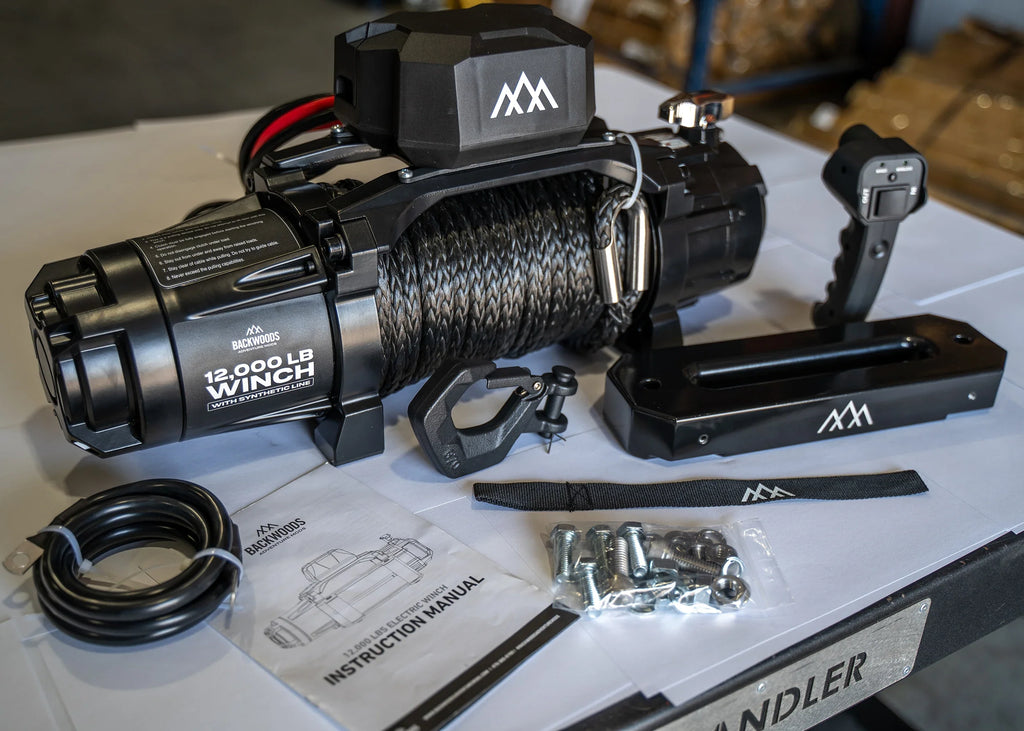

What's Included:
- 12,000 lb winch
- 85ft synthetic line
- Winch fairlead and shackle
- Removable solenoid with power cables
- Wireless winch remote with flashlight
- Winch wire for remote
- Installation hardware
Specs & More Info:
- Rated Line Pull: 12,000 lbs (5,443 kg)
- Motor: 12V DC, 6.0 HP Series Wound
- Gear Ratio: 216:1
- Line Speed: 4.59 ft/min
- Drum: 2.5" diameter / 9" length
- Mounting Bolt Pattern: 10" x 4.5"
- Check out our winch pull test here 🤘
