Stock: 1
Sold in pairs (2x frames) - looking for the large seat back frame set (fits 80, 70 series)?
*Prototypes shown, actual product appearance may vary

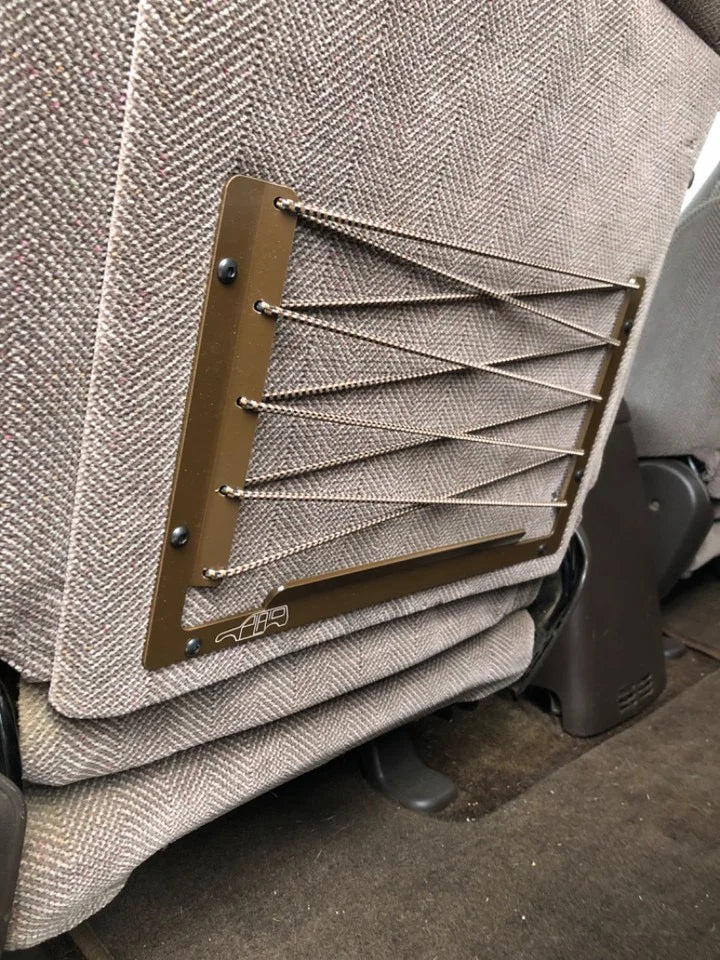

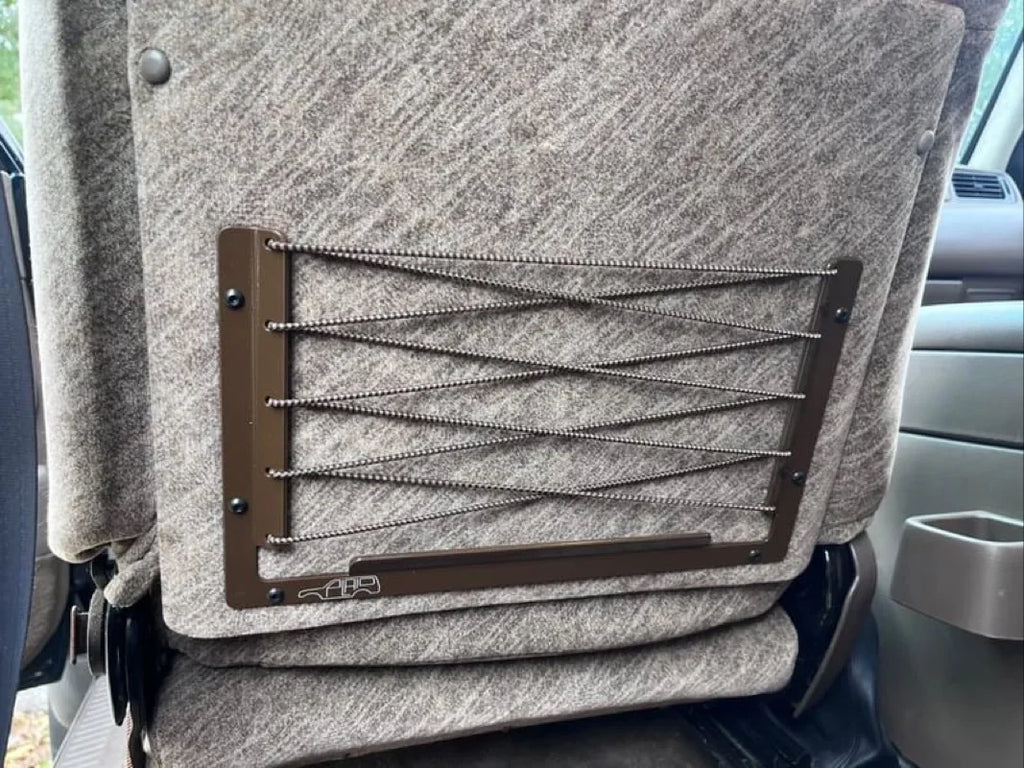

The smaller iteration of the Cruiser Patch 70/80 Series Toyota Land Cruiser seat back frame set, these frames are designed to fit flat seat back panels which attach using screws and captive nuts/washers (90183-06044 AKA spring nuts).

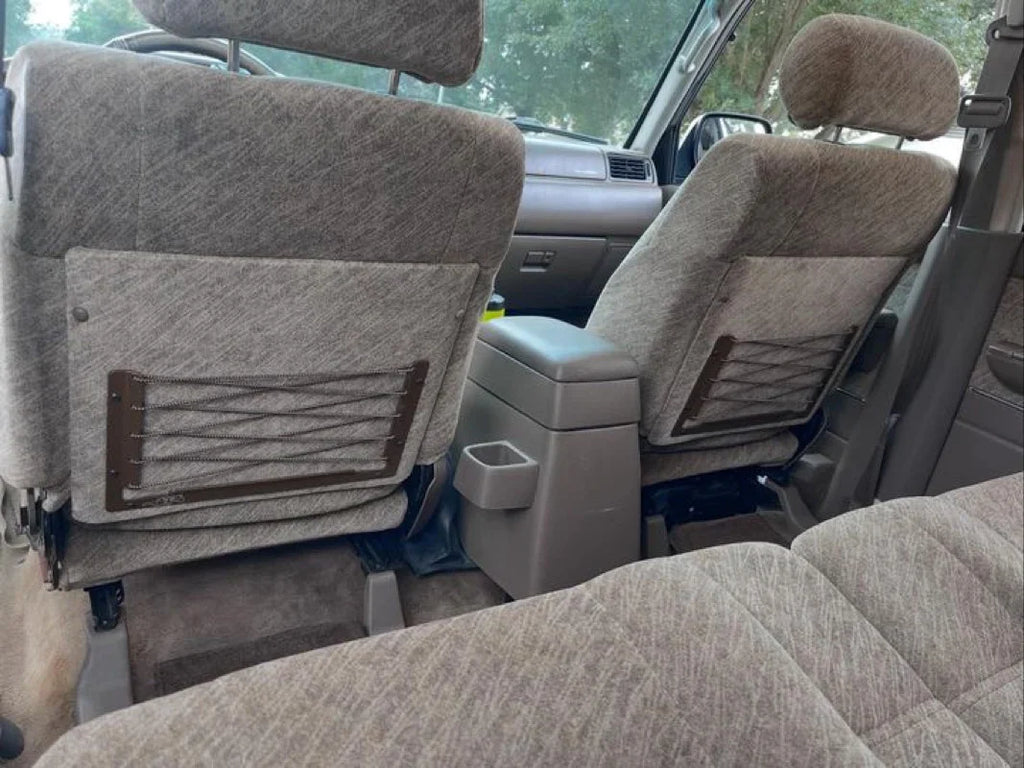

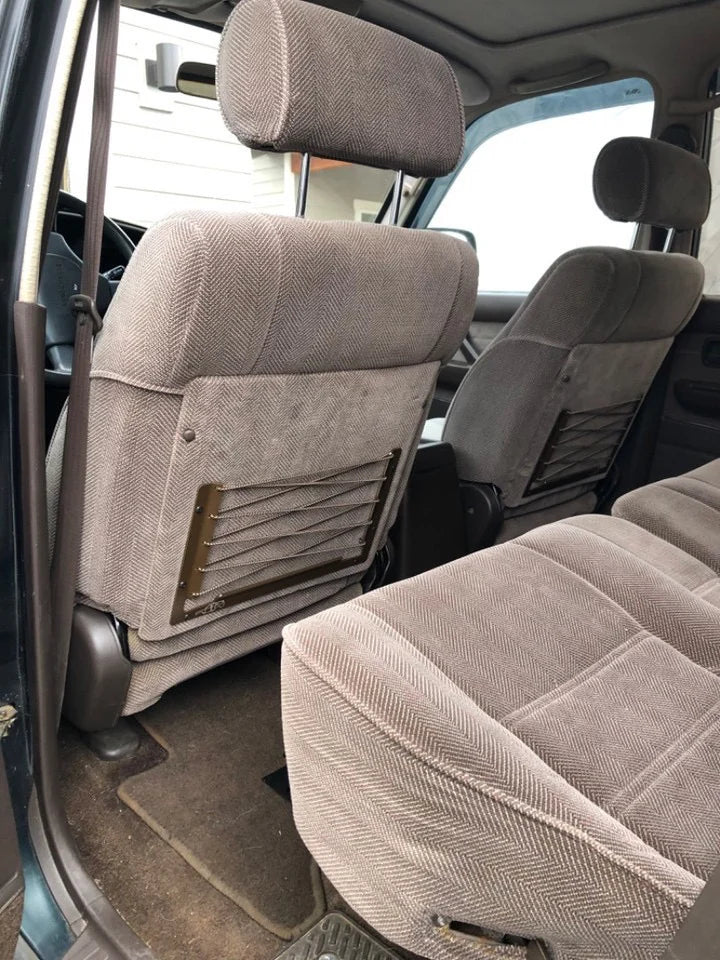

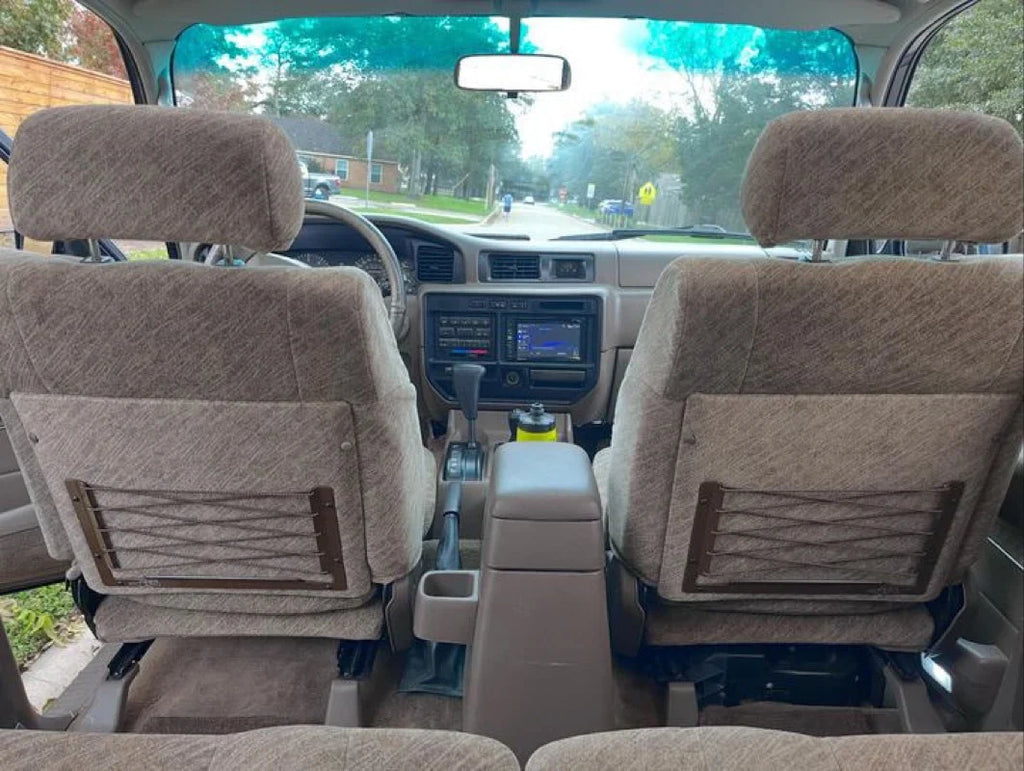

In the United States, these seat back frames are a direct fit on the 1993-1994 80 Series Land Cruiser equipped with cloth seats. Around the world, these frames will fit many other versions of the 80 Series and 70 Series Land Cruisers listed below.
Installation note:

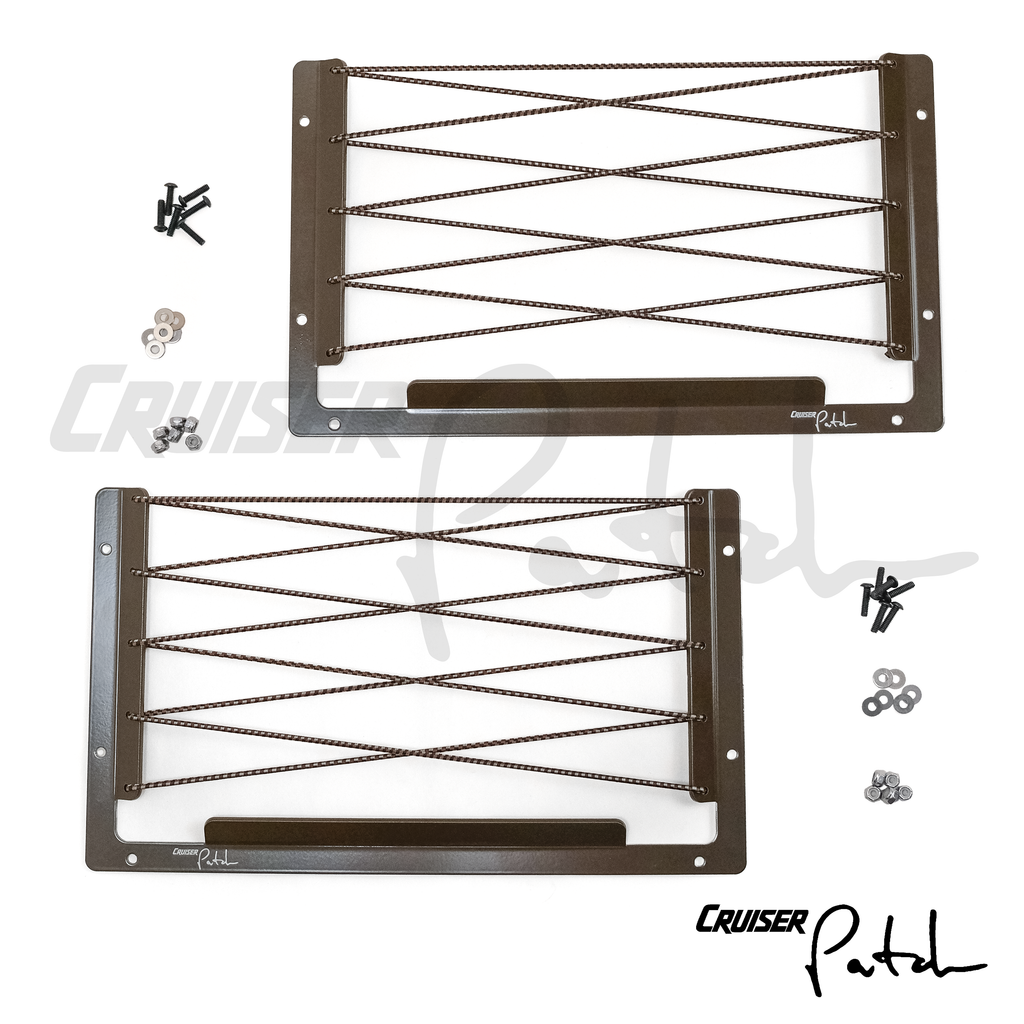

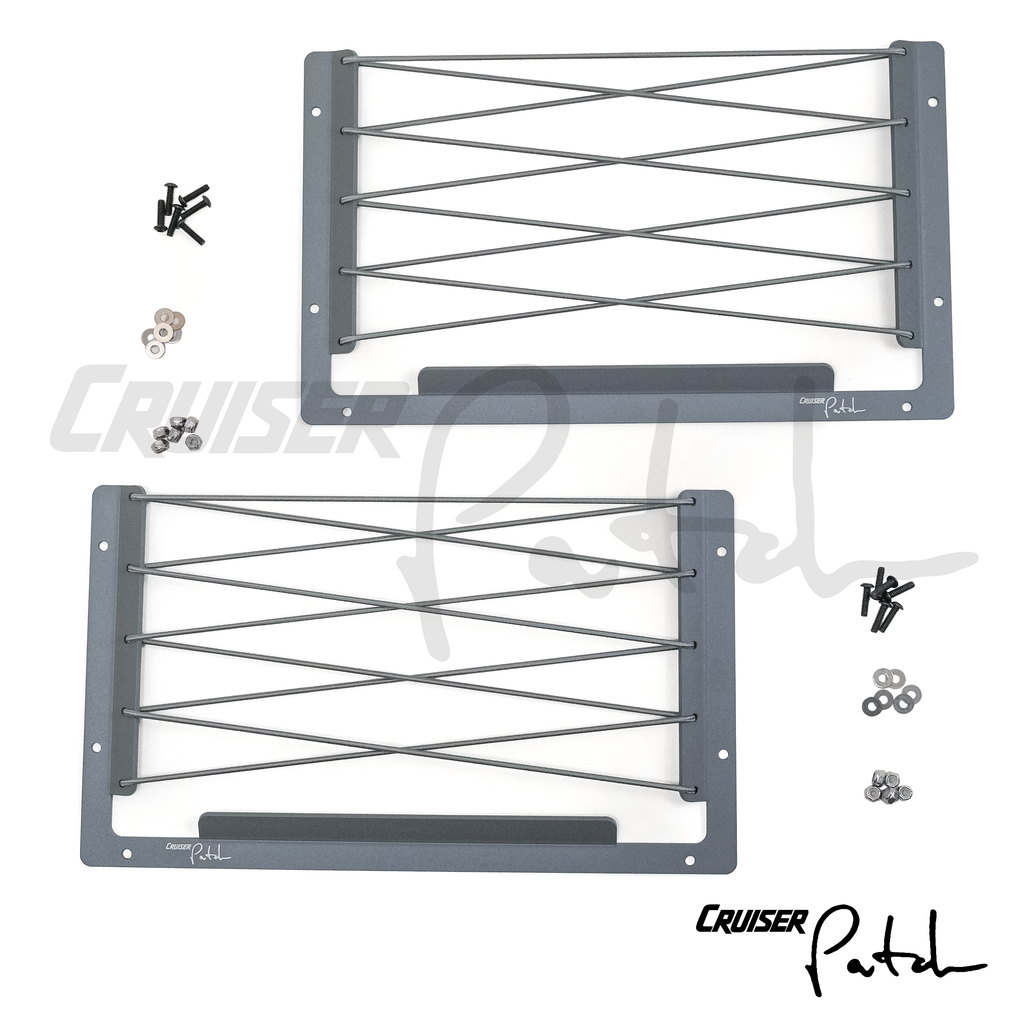

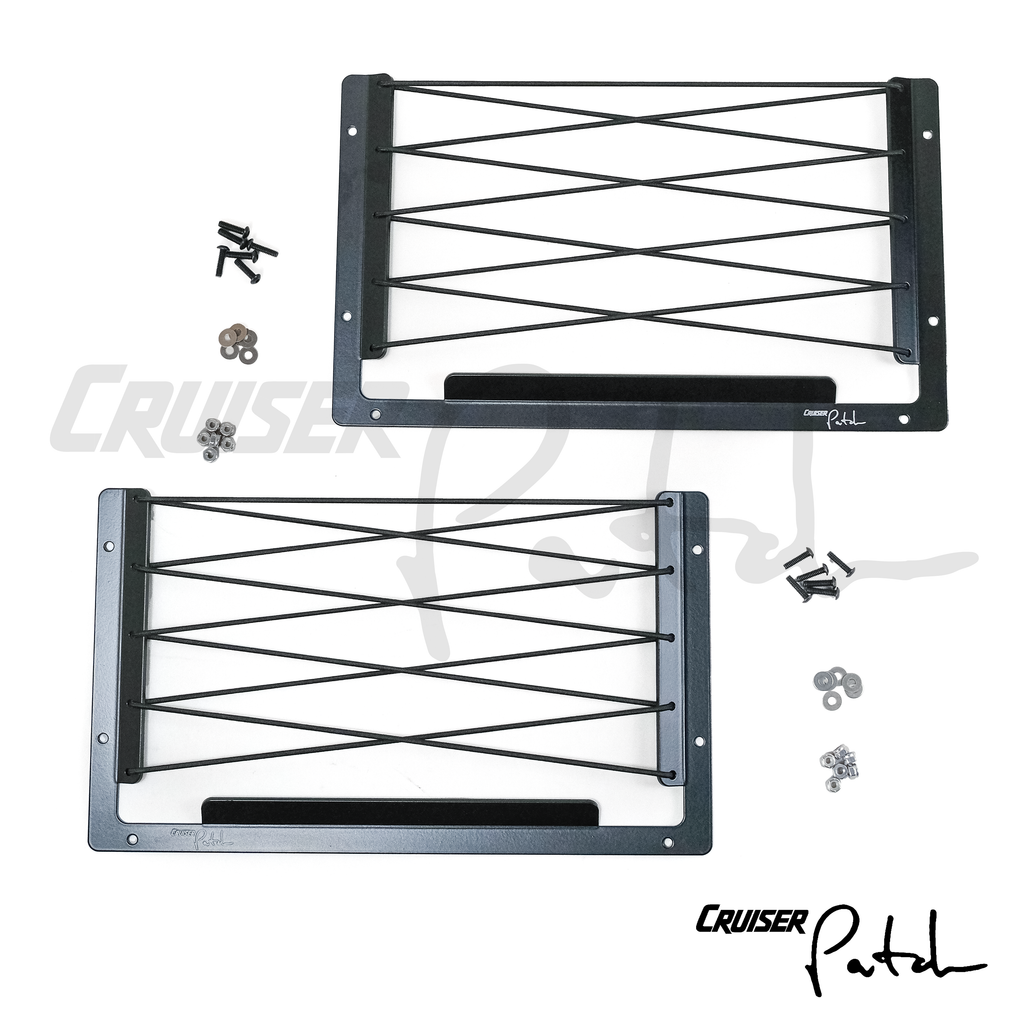

Includes:
- Small seat back frames (2x): SB7080S
- 10/24 nylock 18-8 stainless steel nuts (12x):
- 10/24 x 3/4" button socket cap 18-8 stainless steel black oxide bolts (12x):
- #10 oversized washer (1/2" OD) 316 stainless steel (12x):
- Replaceable 1/8" shock cord (1x)
Specifications:
- material: 5052 aluminum
- finish: durable powder coat
- hand-strung in USA
Fitment details: (fits 71-51 seat & seat track with 90183-06044)
- 01.1990-07.2004 70 Series Toyota Land Cruiser (BJ70, BJ73, BJ74, FJ70, FJ73, LJ70, LJ71, LJ78, RJ70, HZJ73, HZJ74, HZJ77, KZJ71, KZJ78)
- 01.1990-07.2004 70 Series Toyota Land Cruiser Prado (LJ73, LJ77
- 01.1990-12.1997 80 Series Toyota Land Cruiser (FJ80, FZJ80, HDJ80, HZJ80, HDJ81, HZJ81)
- *Does NOT fit LX450
Idea and design courtesy of Kyle Freud (formerly, Plaidwagon)
MADE IN COLORADO, ASSEMBLED IN GEORGIA, USA
