Stock: 20
*Sold in sets of two (2). Recommended for both front and rear doors

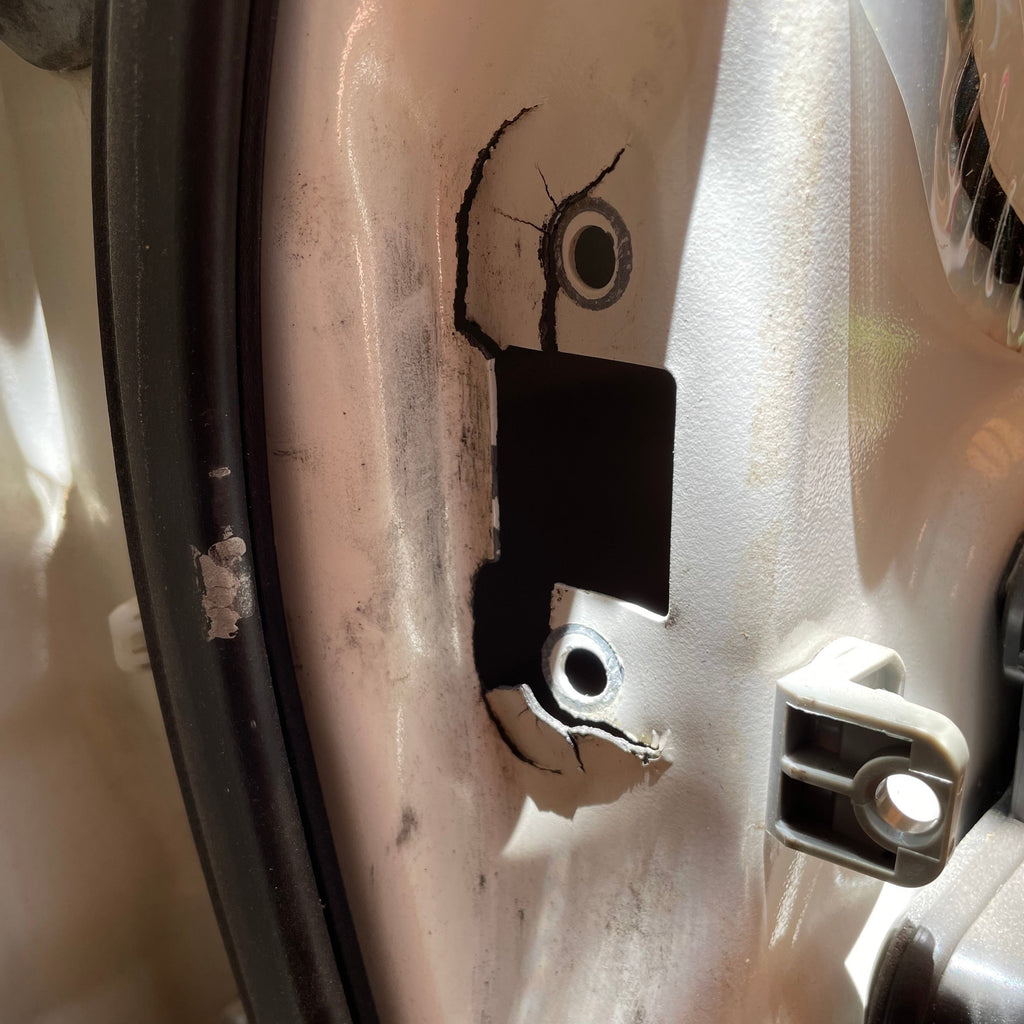

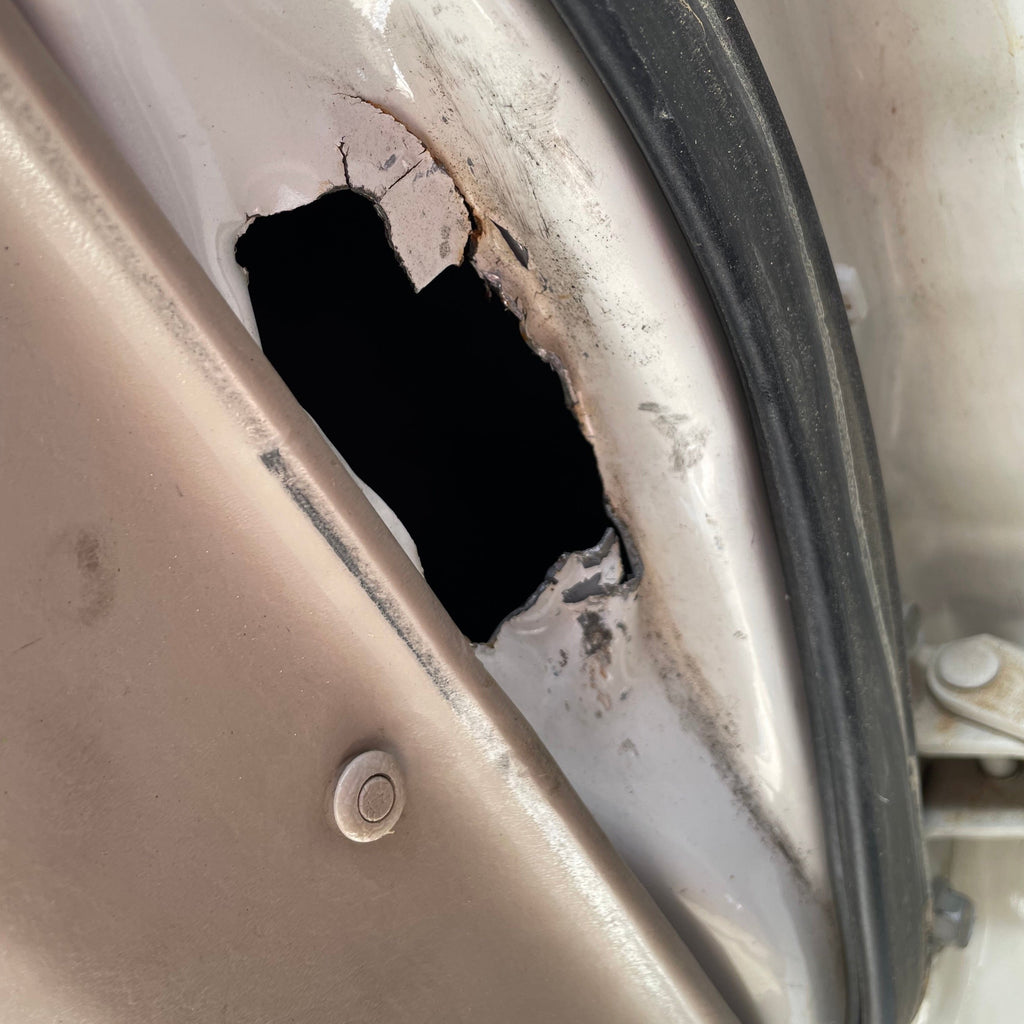

The rear doors on the 5th Generation Toyota 4Runner, 1st Gen Toyota Tundra, and 100 Series Toyota Land Cruiser (LX470) have been breaking in recent years but can easily be fixed or prevented by installing a set of Toyota door reinforcement plates from Cruiser Patch. This problem is also known to affect the 1st Gen Toyota Sequoia and other vehicle.

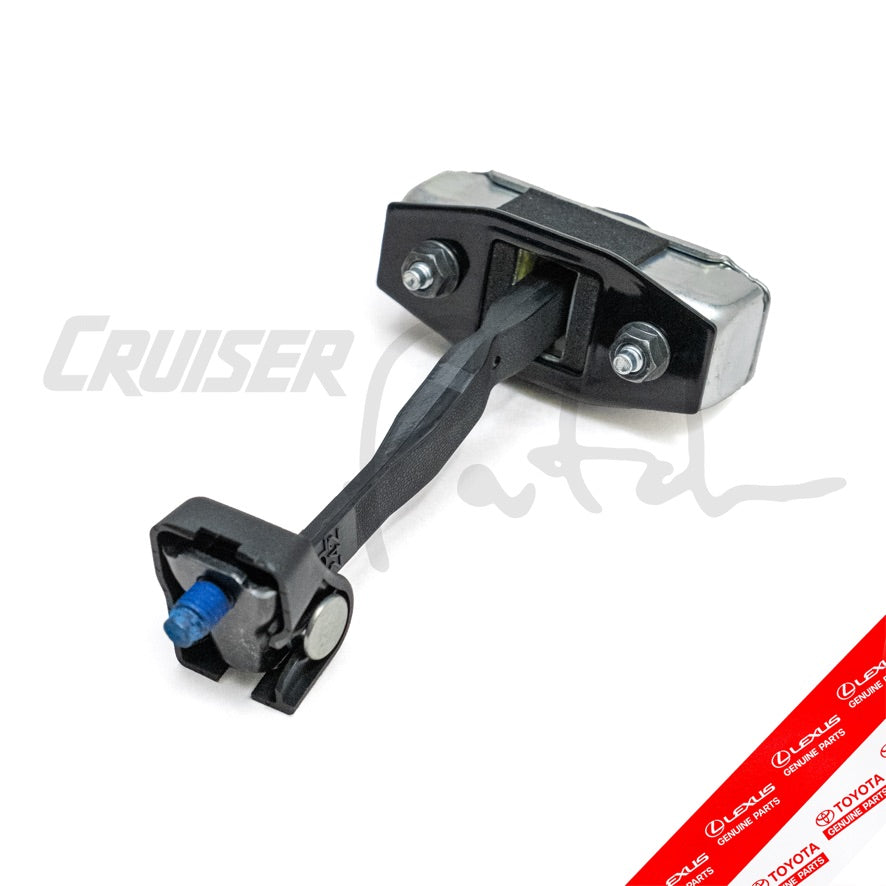

As time passes and doors go unused, the door checks (AKA door straps) found on many Toyota and Lexus vehicles become stuck and apply too much pressure to the door frame. The resulting damage can be costly to repair.

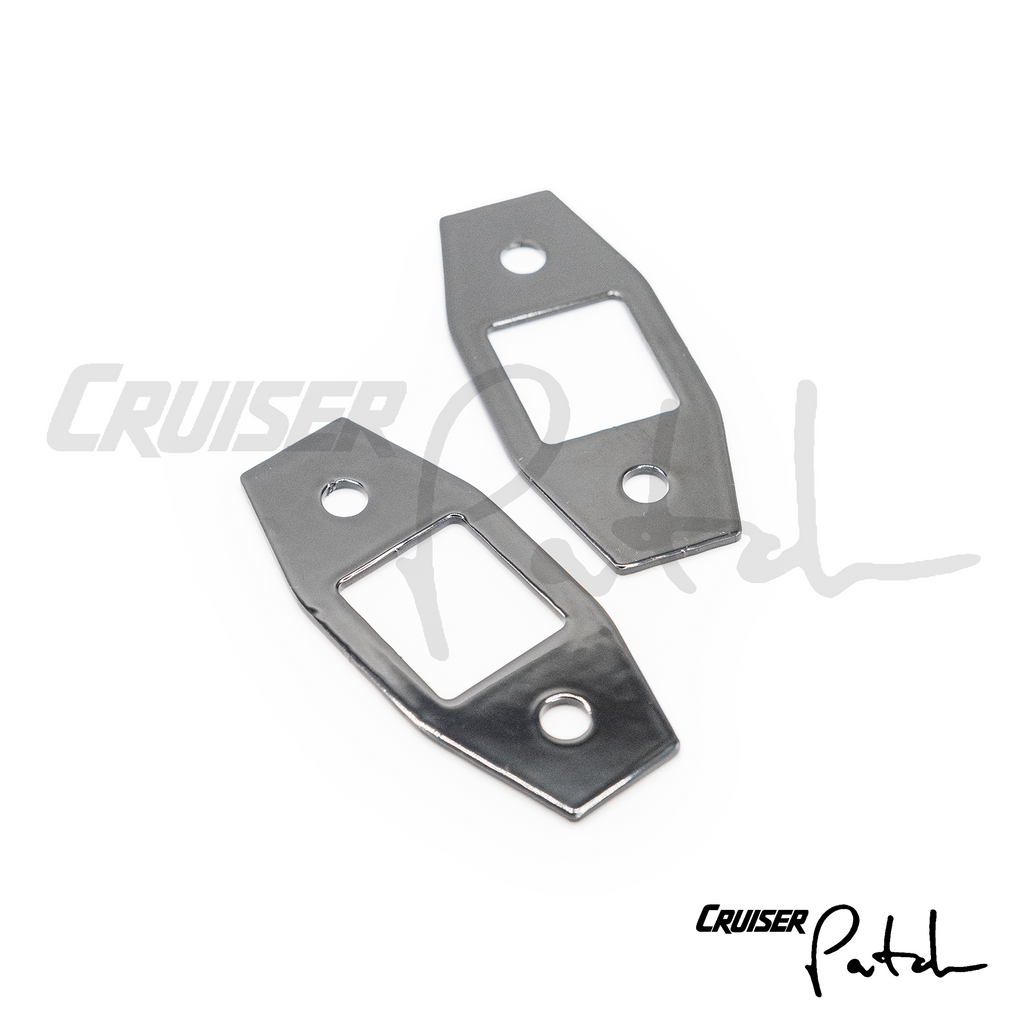

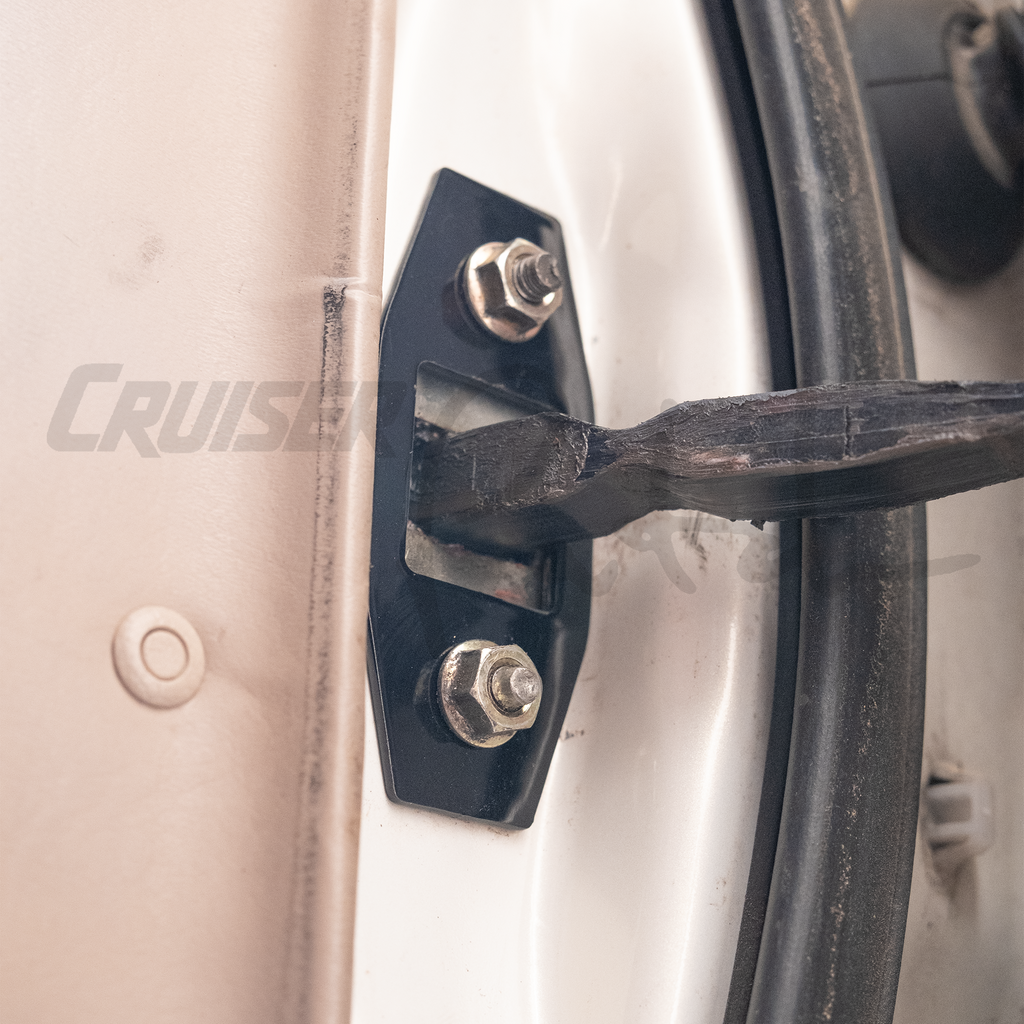

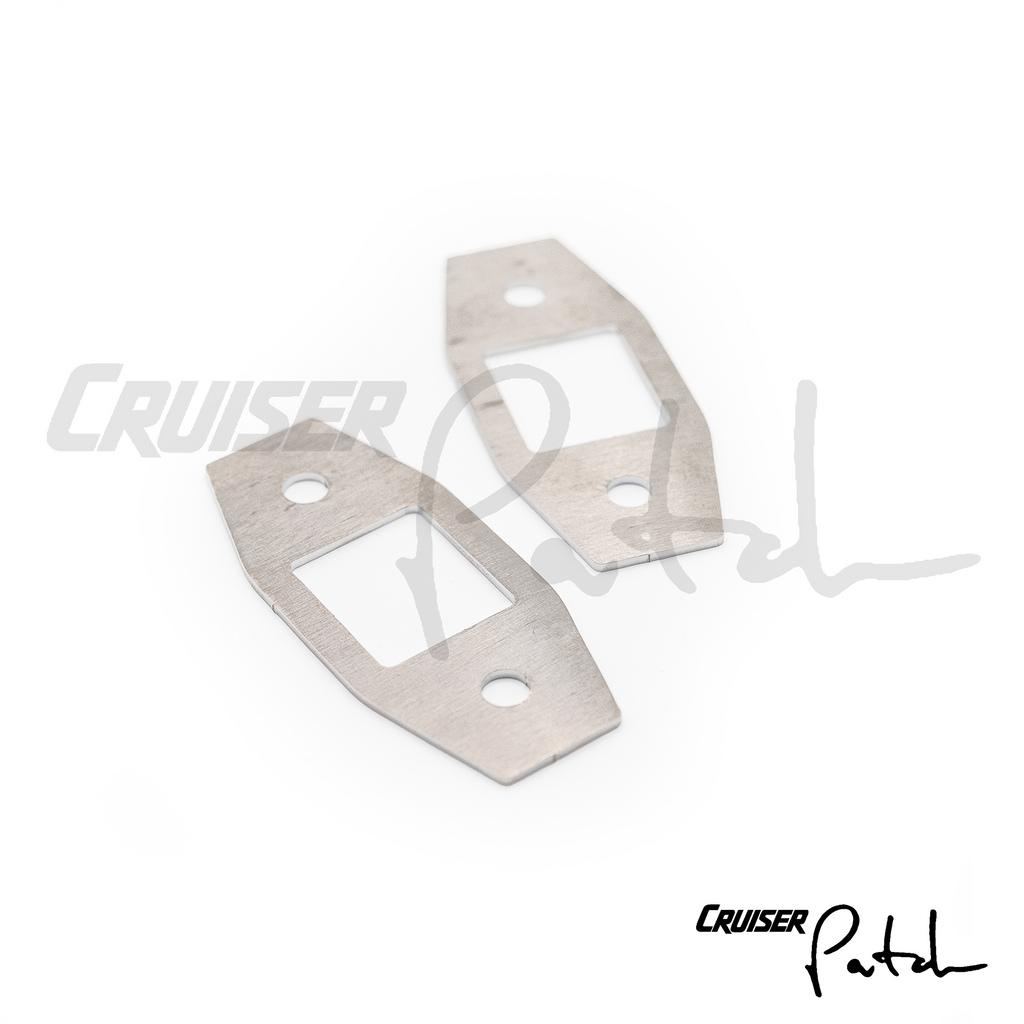

The Door Limiter Reinforcement plates designed by Cruiser Patch provide extra rigidity to the door in order to prevent this phenomenon.
Made from 4130 chromoly, these plates are designed in Tucker, Georgia and fabricated in the USA. They are powder coated satin black for a refined, clean finish. The included 3M gaskets prevent damage to the paint of the door skin.
Plates measure 1-3/8" across by 3-1/8" tall
Installation tips:
- Torque nuts to 44 in-lbs.
- Torque door bolt to 20 ft-lbs.
- Install video
Includes:
- Cruiser Patch door reinforcement plates (2x):

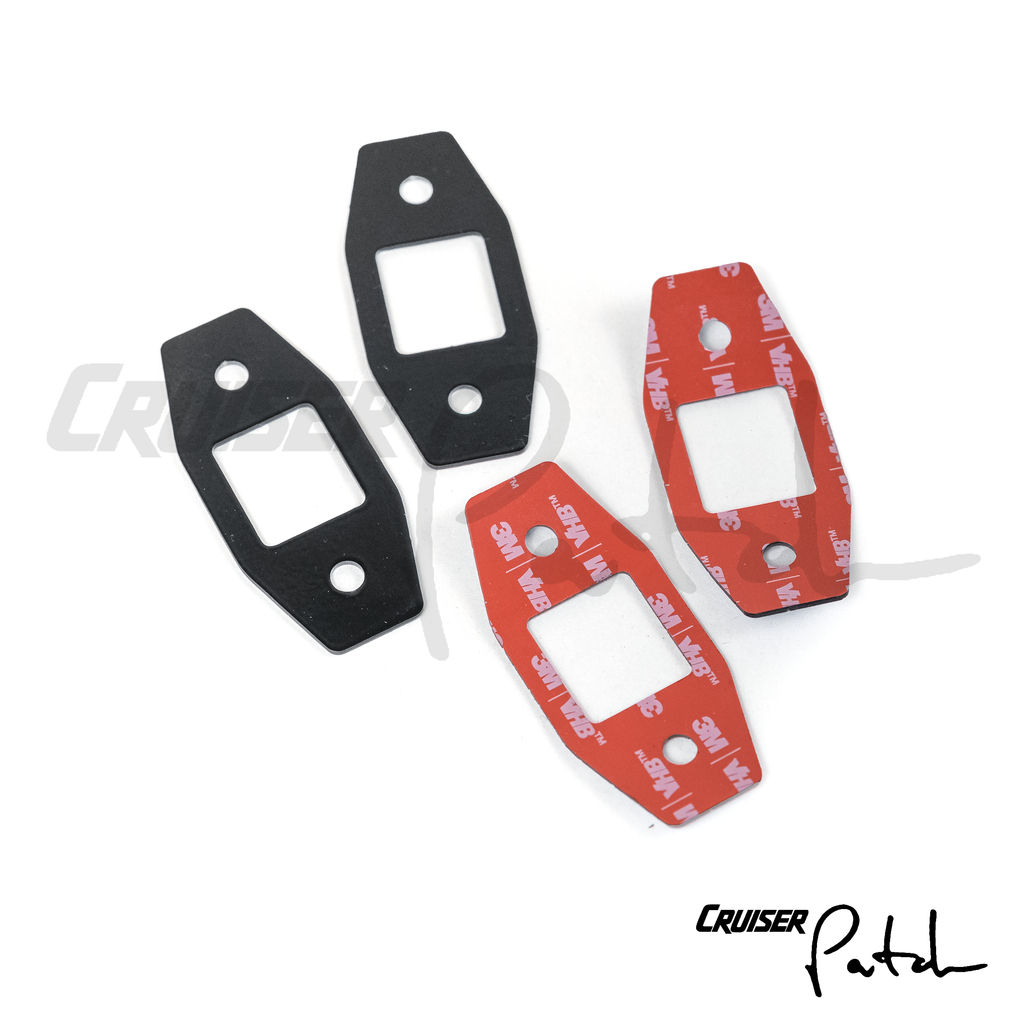

- Fit-cut 3M gasket* (2x):
- Lifetime, no-questions-asked warranty
*powder coated version only
Fitment details:
- 09.2007+ Toyota Land Cruiser (URJ200, UZJ200, GRJ200, VDJ200, URJ202)
- 01.1998-07.2007 Toyota Land Cruiser (UZJ100, FZJ100, HDJ100, HDJ101, FZJ105, HZJ105)
- 01.1990-12.2006 Toyota Land Cruiser (FJ80, FZJ80, HDJ80, HZJ80, HDJ81, HZJ81)
- 11.2007+ Lexus LX570 (URJ201)
- 01.2012-08.2015 Lexus LX460 (URJ202)
- 09.2015+ Lexus LX450D (VDJ201)
- 01.1998-07.2007 Lexus LX470 (UZJ100)
- 11.1995-12.1997 Lexus LX450 (FZJ80)
- Toyota Tundra (1st, 2nd, 3rd gen)
- Toyota Sequoia (1st, 2nd, 3rd gen)
- Toyota 4Runner (3rd gen, 5th gen confirmed)
MADE IN USA
