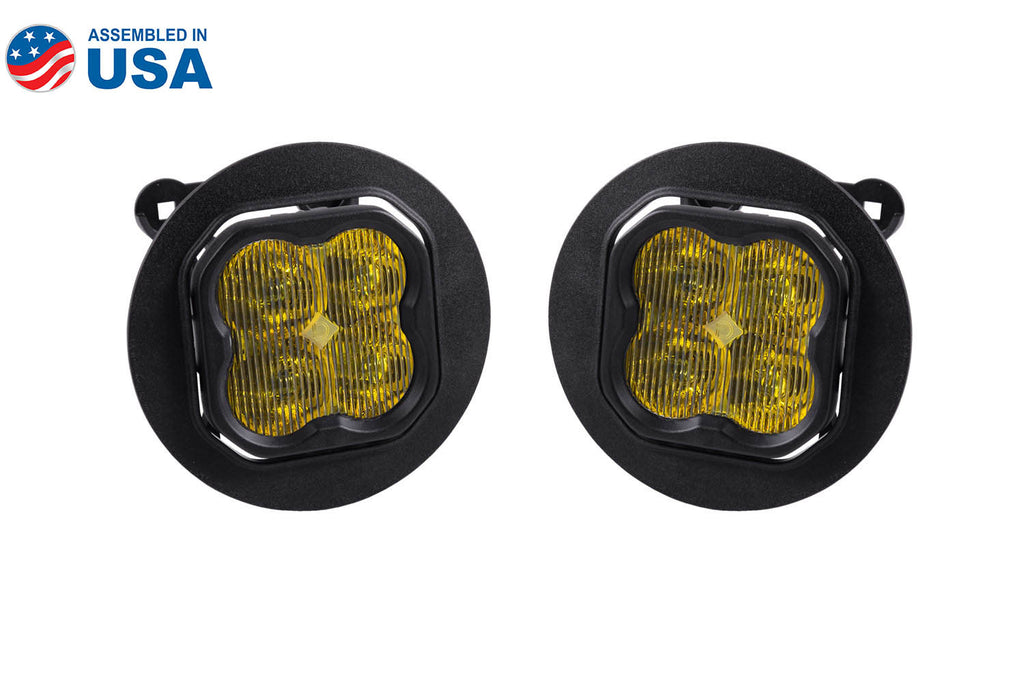

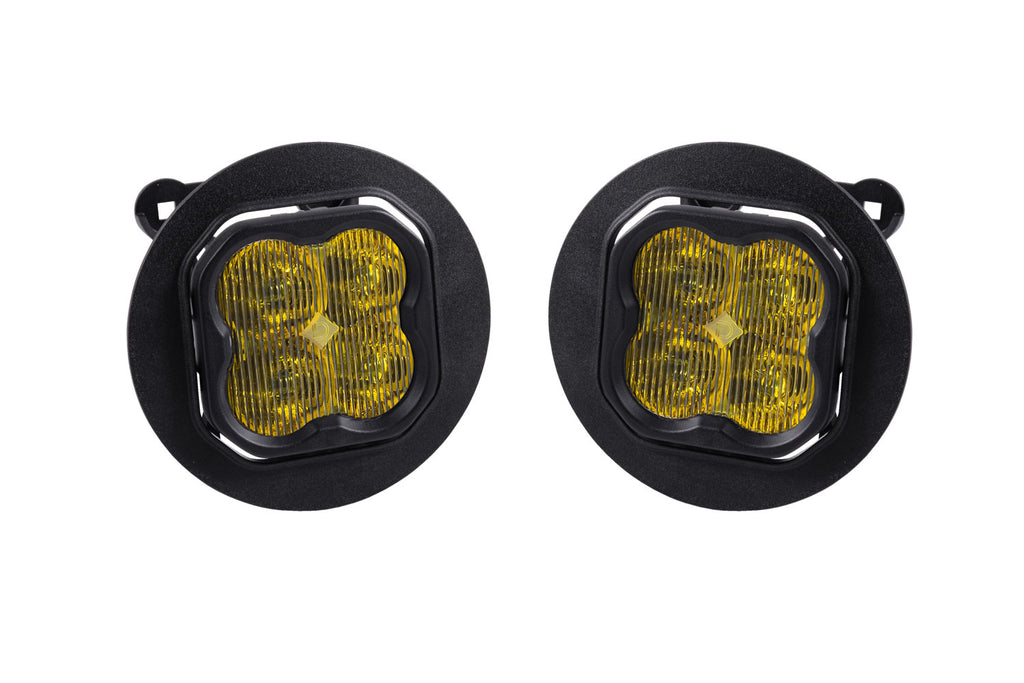

Overview. Upgrade your fog lights with our SS3 Type OB Fog Light Bracket Kit! Featuring higher output intensity than any other 3 inch light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. With the included standard bezel the SS3 Fog Kit has a clean factory-style appearance only much brighter!
Plug and Play. Thanks to custom-molded brackets the SS3 Fog Light Bracket Kit can be installed on your in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.
From there while other options on the market lose as much as 10 percent of the light output shining through an outer lens the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature when coupled with high-intensity LED chips the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

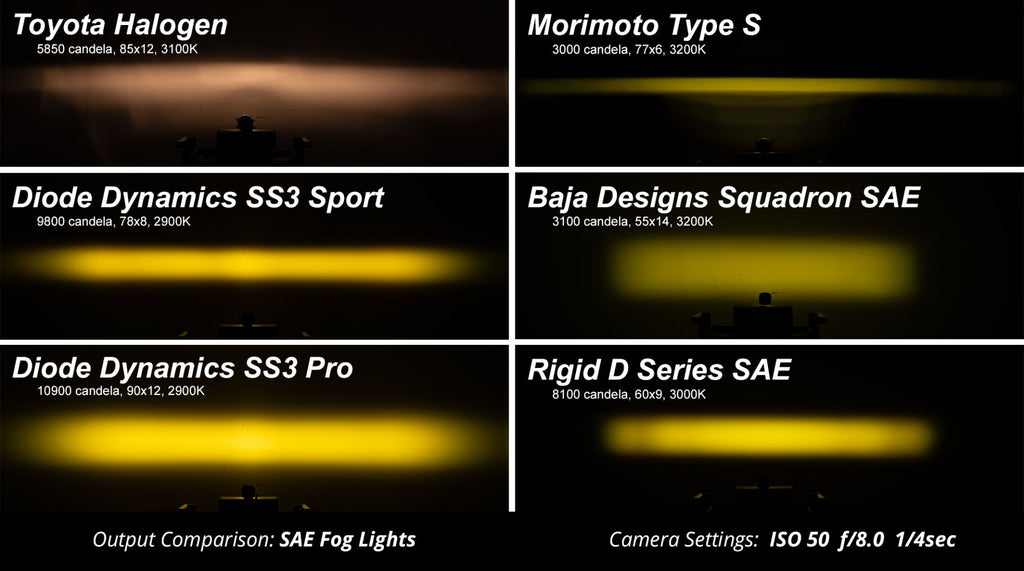

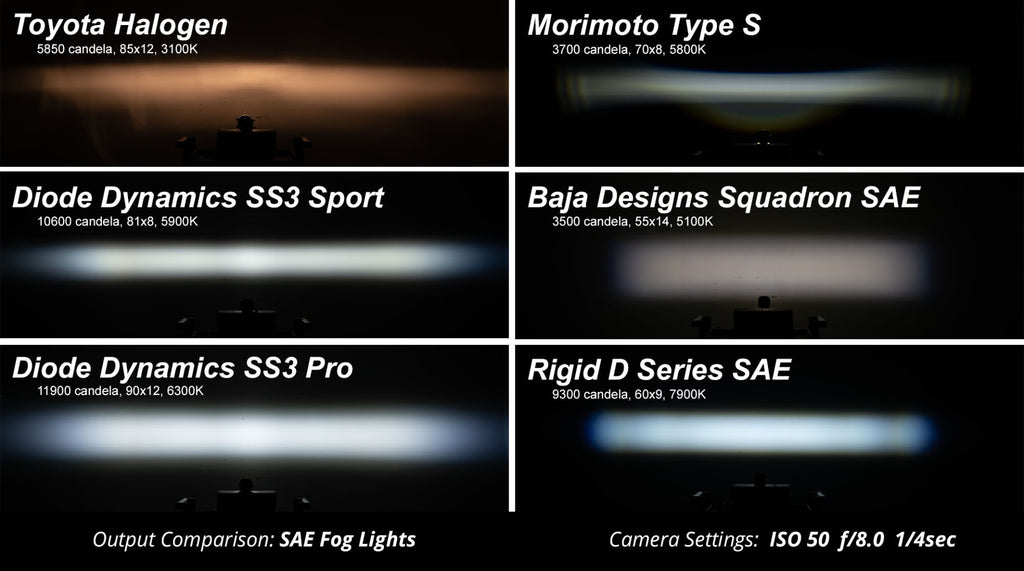

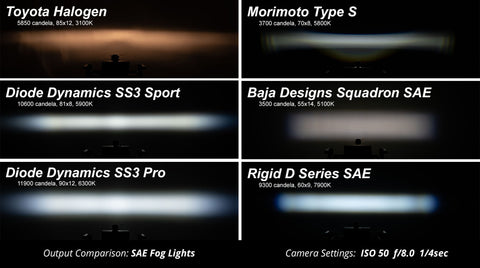

SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling to shape the output in a highly-functional beam pattern.

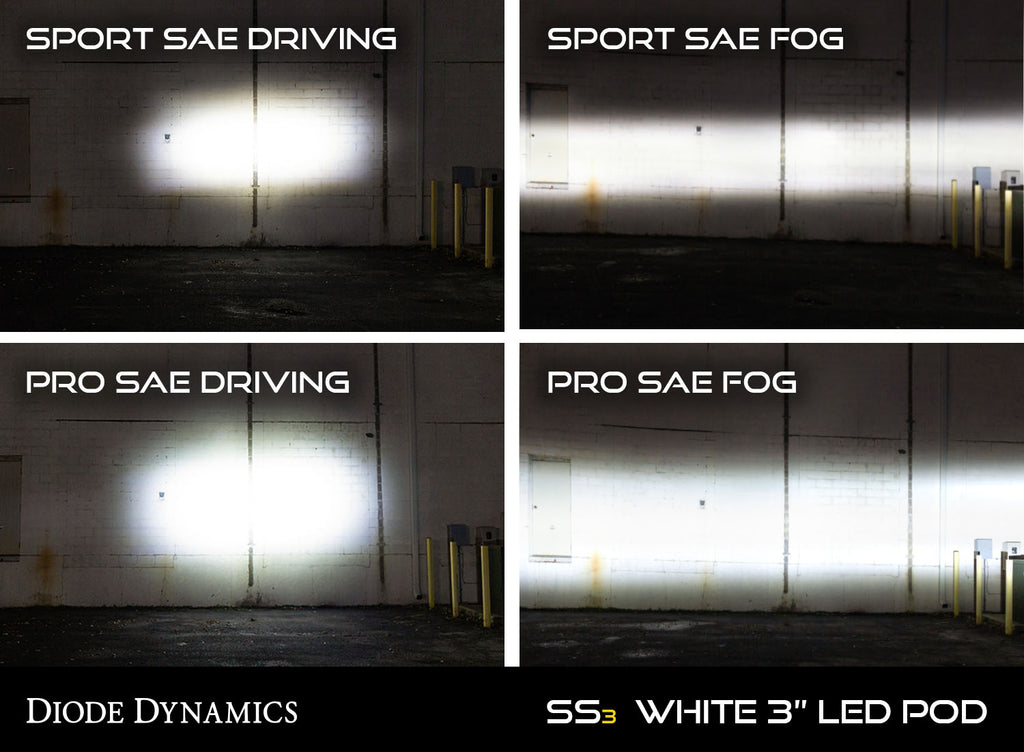

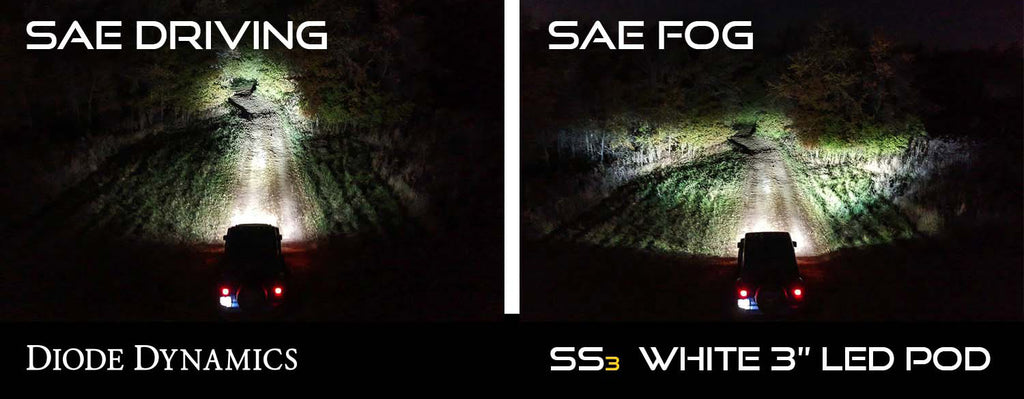

- SAE Driving is designed to supplement your high beams but it's great for general illumination as well. Rather than a traditional spot pattern the Stage Series Driving pattern shines in an 18x8 degree spread providing just enough width to fully illuminate the road ahead at high speeds.
- SAE Fog provides an extremely wide field of view with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow which is often said to help cut through inclement weather.
When installed as a pair and aimed in accordance with your state's regulations the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light and the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use. Please check your local laws and regulations for aiming installation and applicability.
White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature which is a true cool white output and matches most factory LED lighting. The selective yellow is a 3000K color temperature great for high contrast in poor weather or a distinctive look on the road.
Sport Pro or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs and is the best bang for the buck you'll find. The Pro model steps things up in a big way with double the total power. Finally the Max model is designed with cutting-edge automotive emitters for both high power and extreme intensity. This brand new technology comes at a cost but if you're looking for the absolute best in lighting performance the SS3 Max is the answer.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F along with vibration moisture intrusion and corrosion testing. All of these tests are completed to SAE standards just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States allowing for higher quality and performance with the newest and brightest LED technology. No matter what you're driving we pride ourselves in offering only the best possible LED solutions.
- Advanced TIR optics provide high efficiency and focus
- SAE-compliant road-legal output
- Includes standard bezel for factory-style appearance
- Plug and play no modification needed
- Durable powdercoated aluminum extrusion
- Engineered and Assembled in USA
Included in the box:
- Two (2) SS3 3 inch Standard LED Pods
- Two (2) 9006 DT Adapters
- Two (2) H11 DT Adapters
- Two (2) Type OB brackets
- Mounting hardware
- Mounting guide
